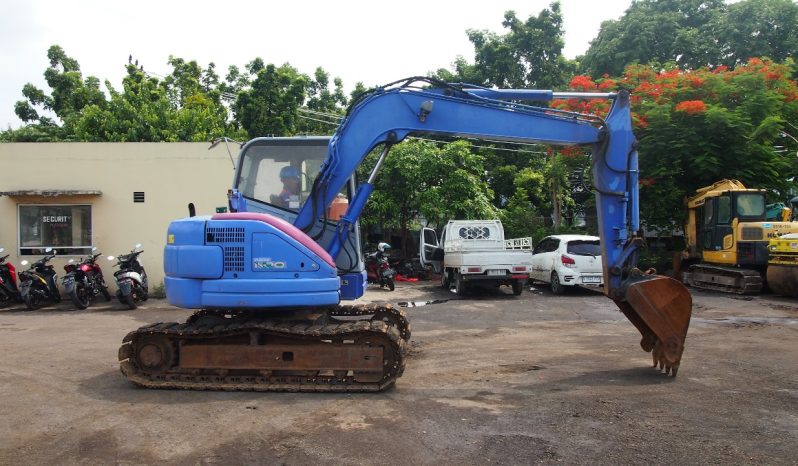

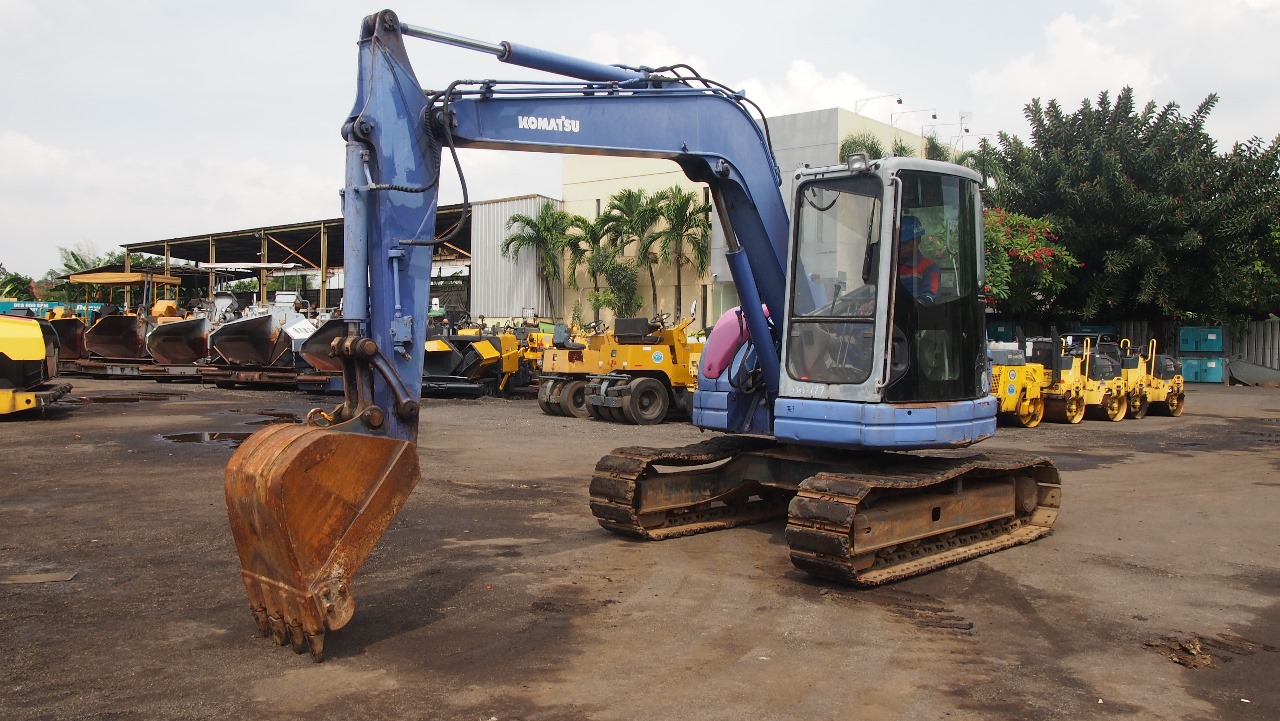

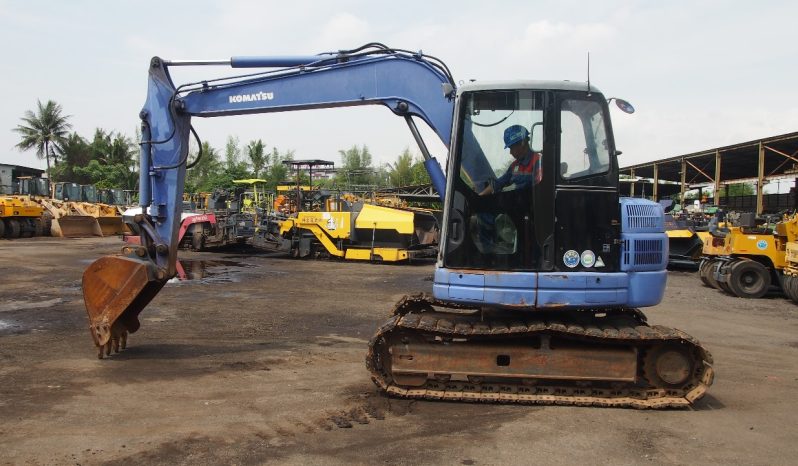

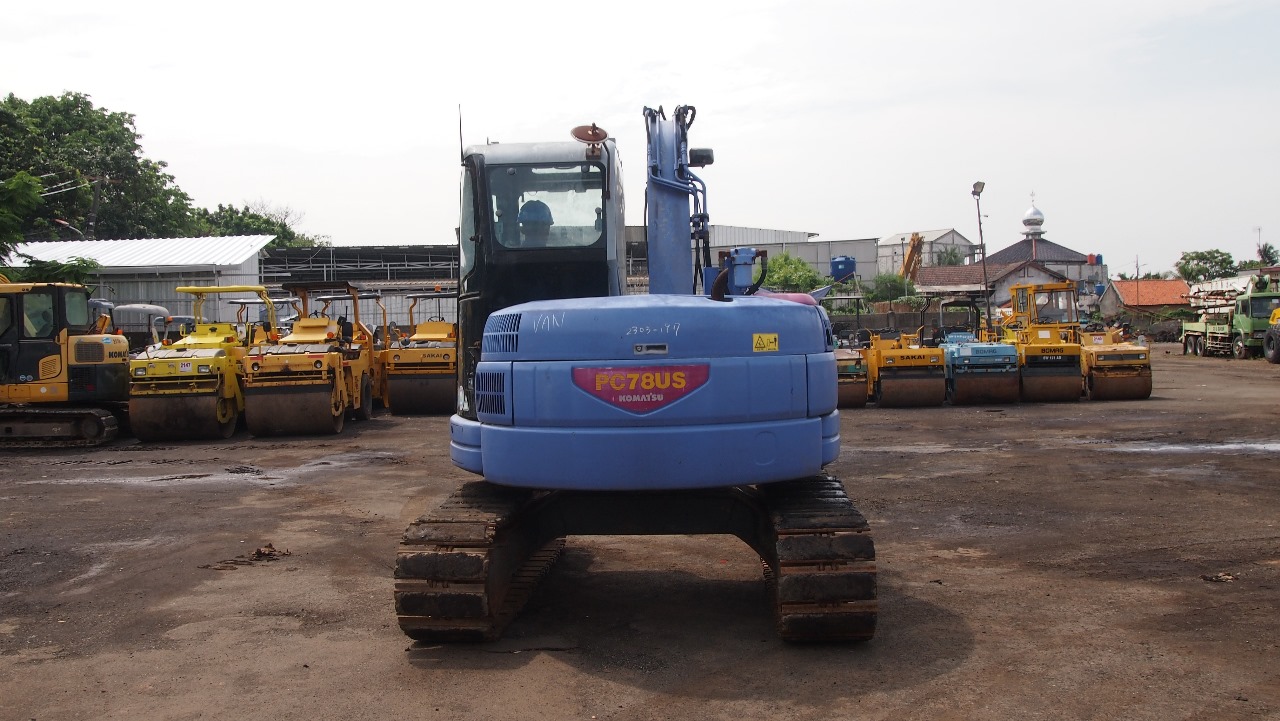

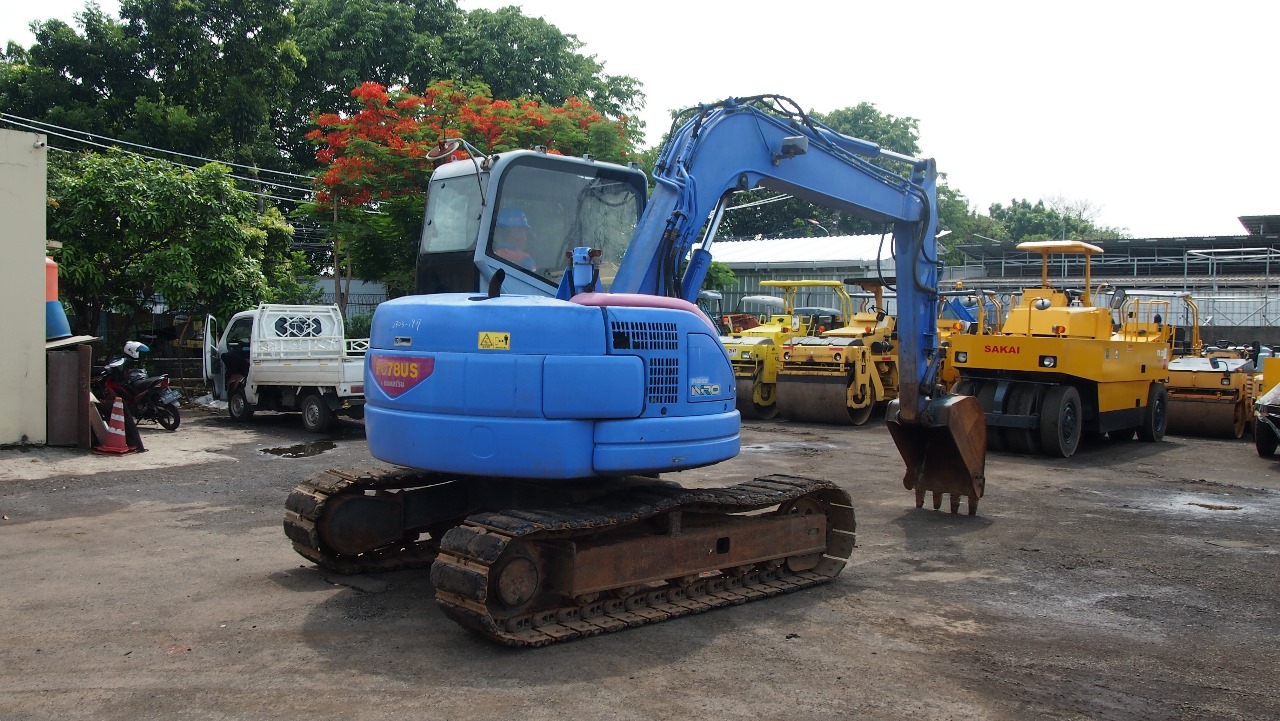

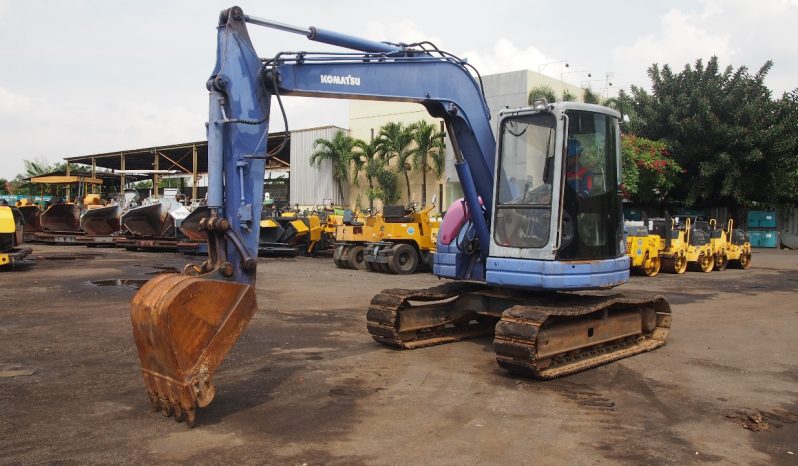

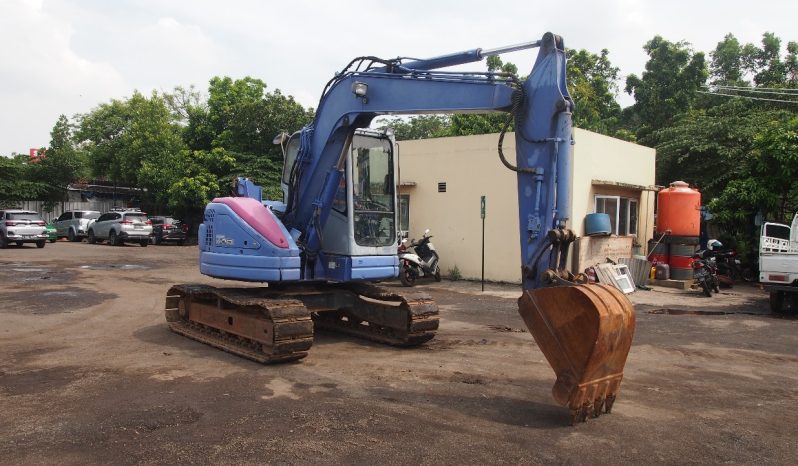

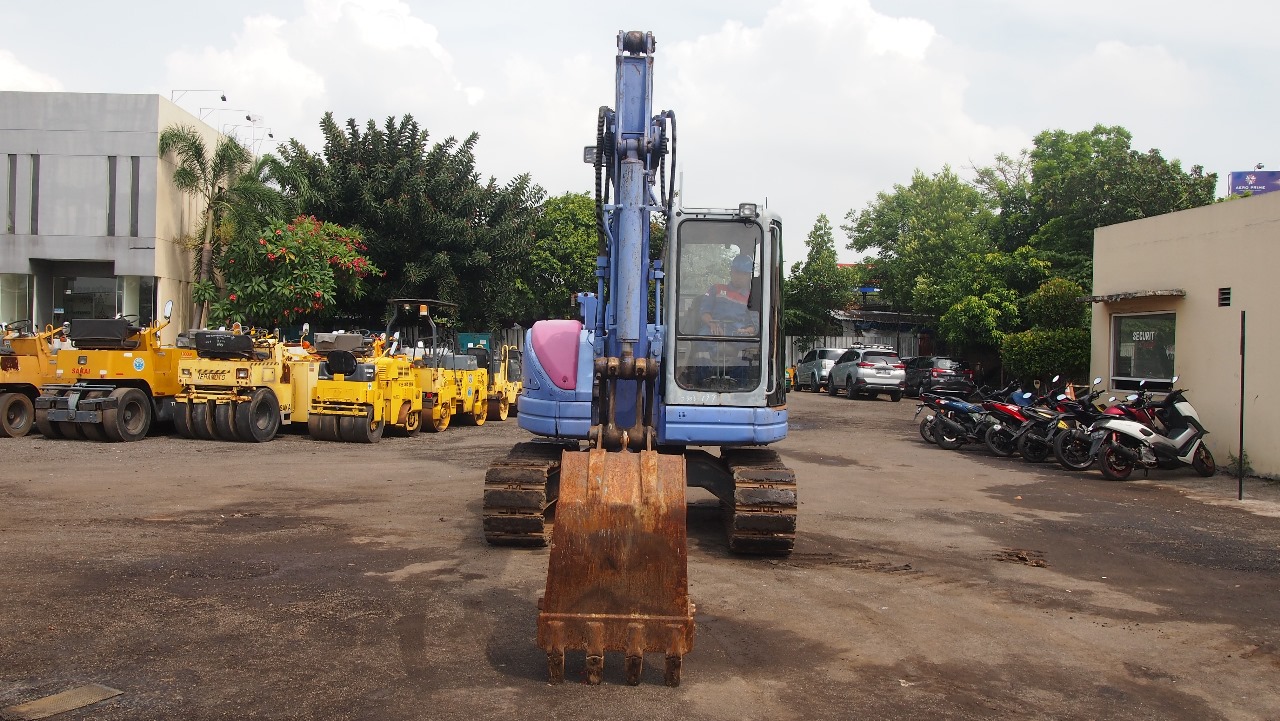

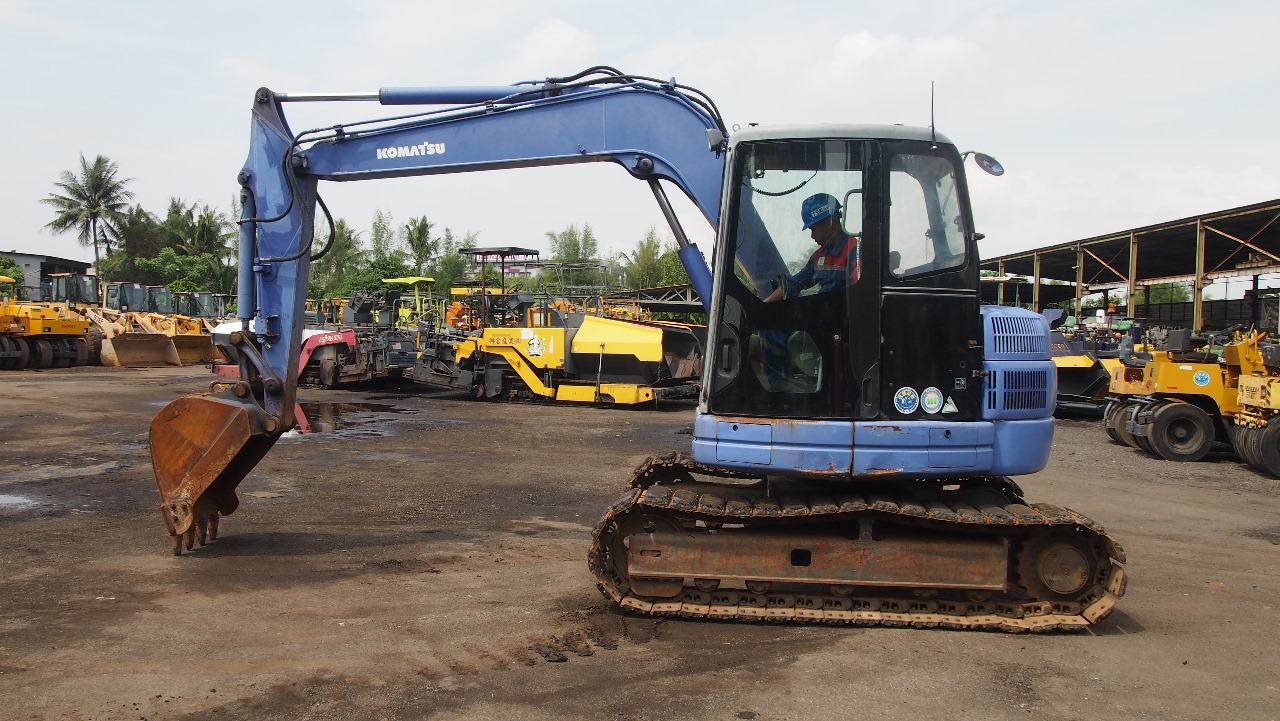

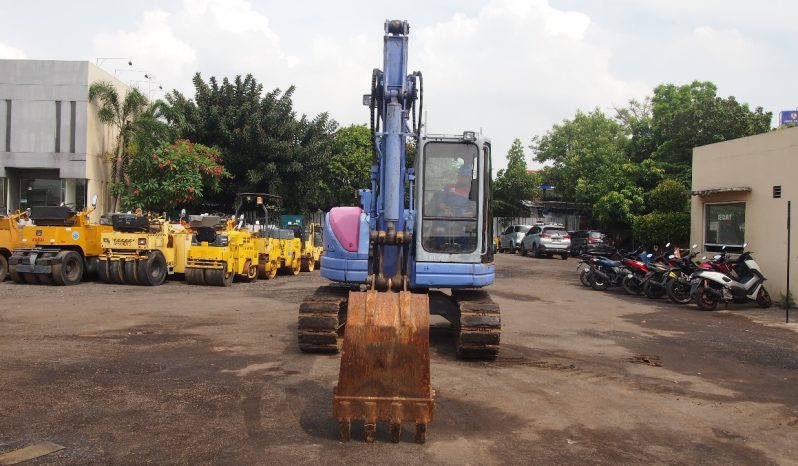

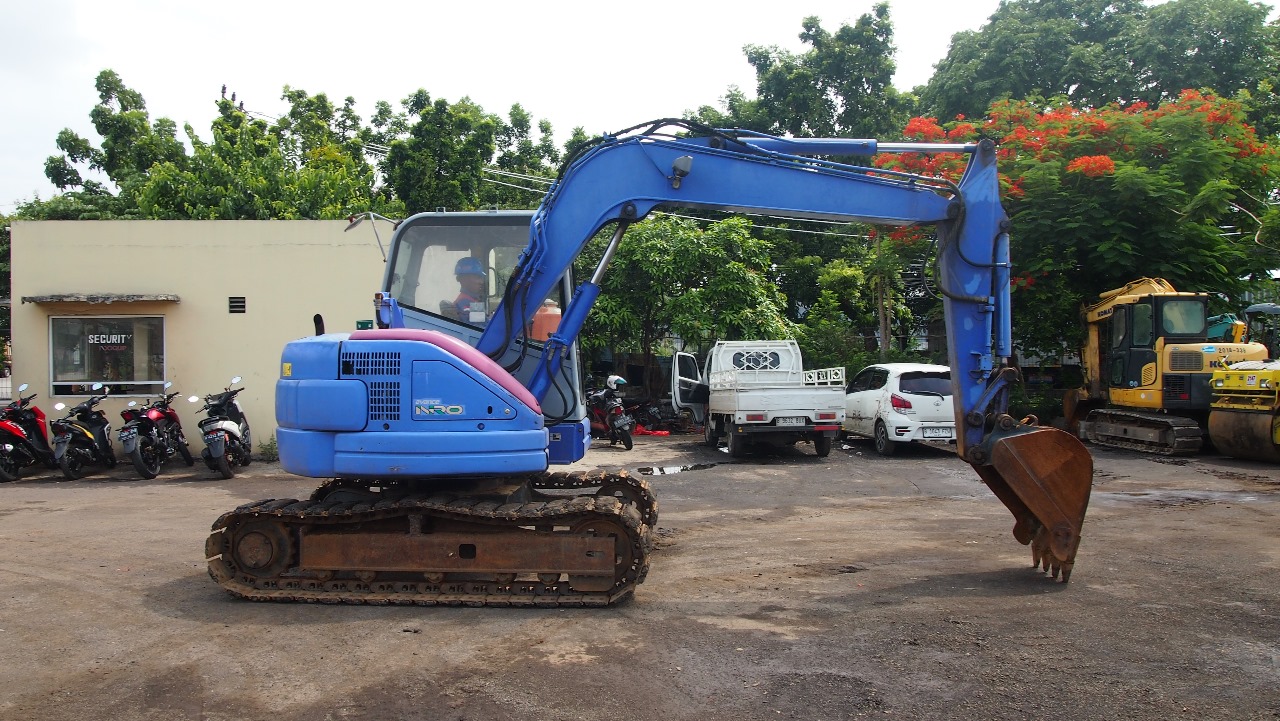

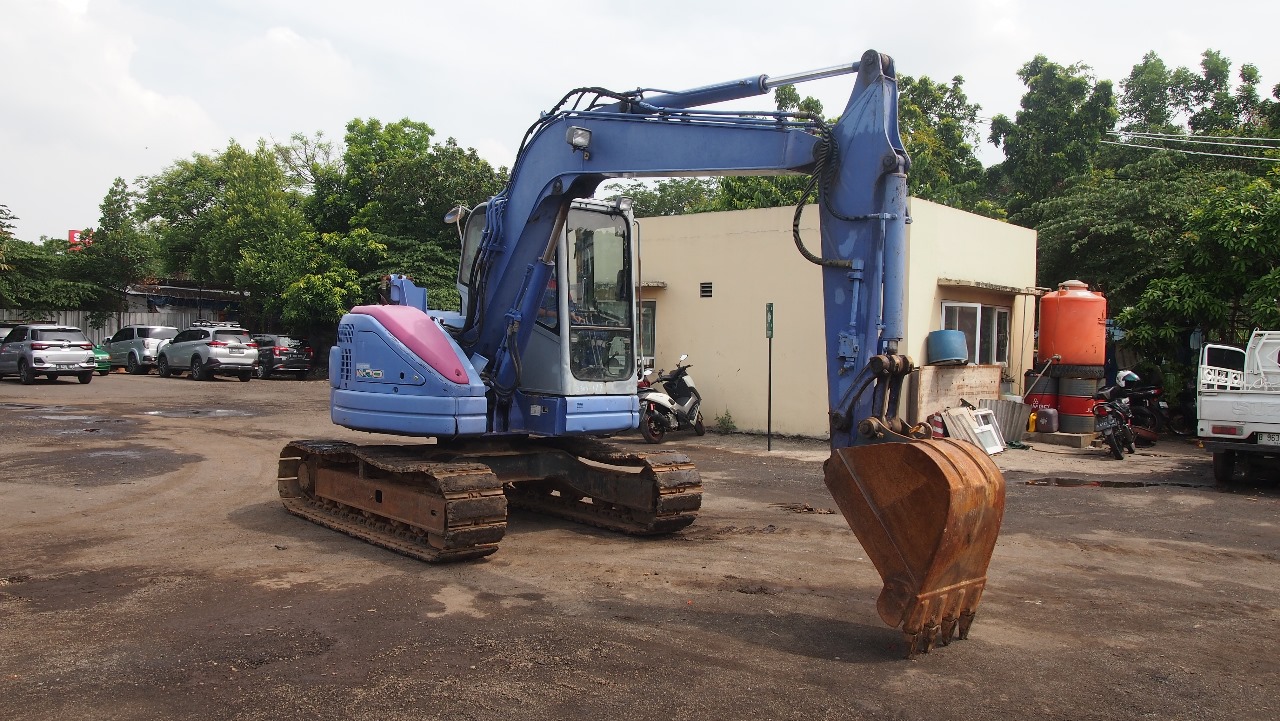

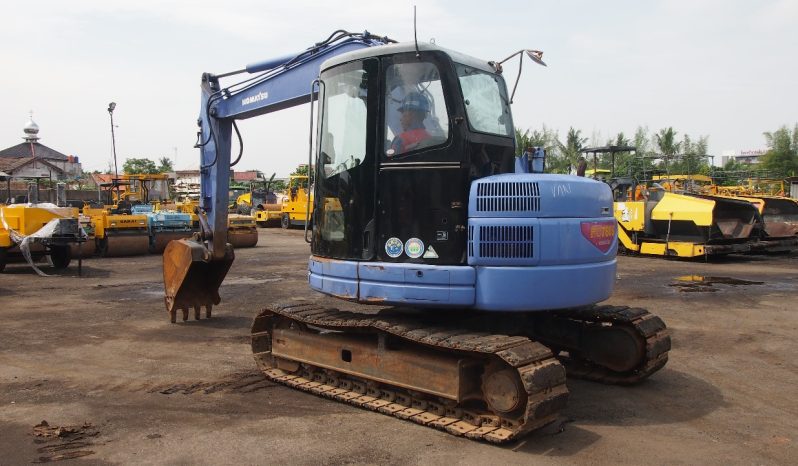

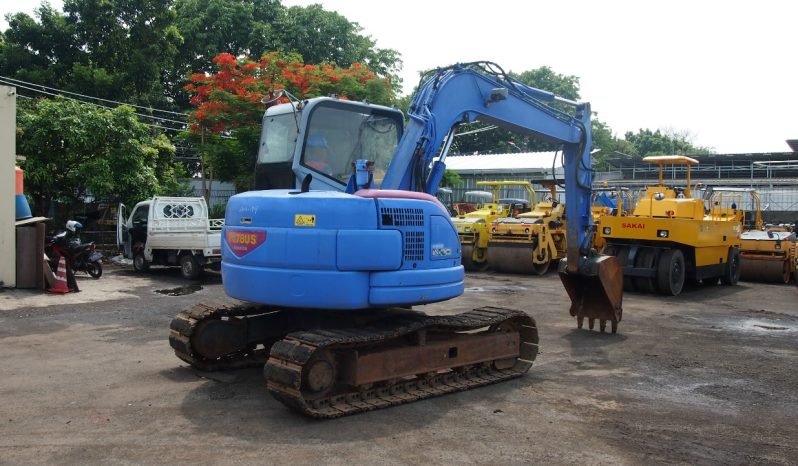

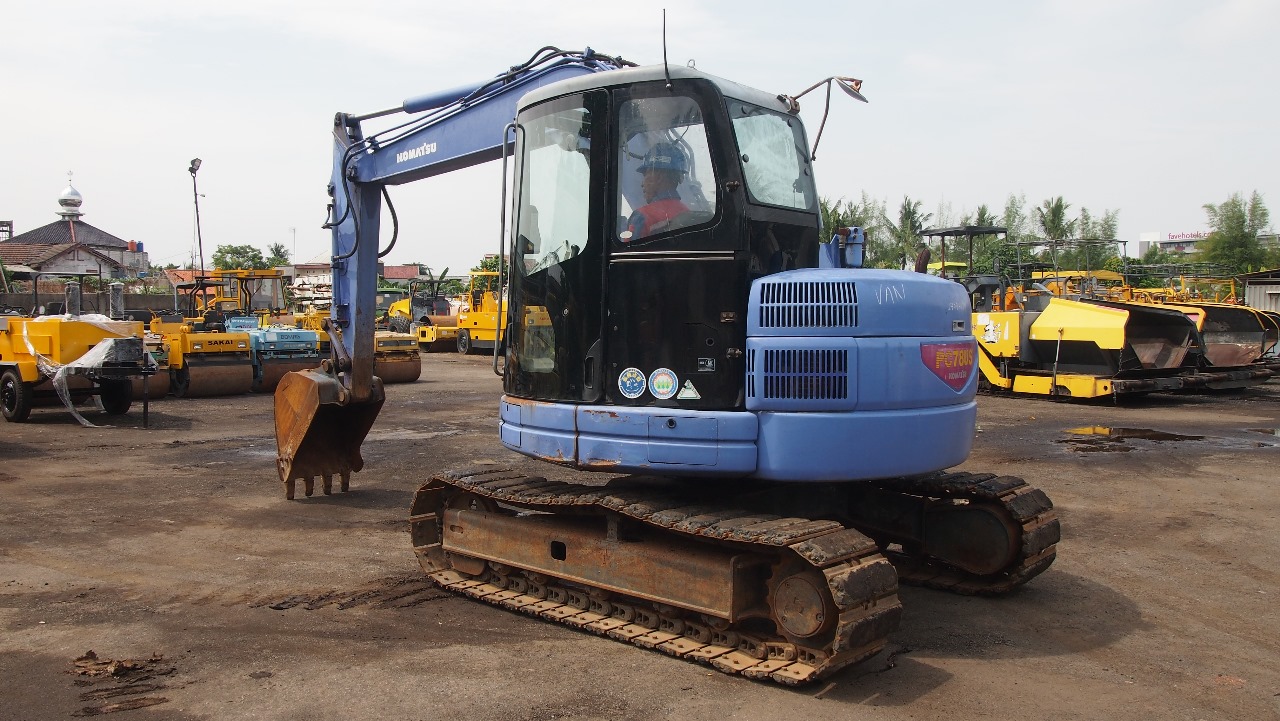

Mini Excavator Komatsu PC78US-5
-
stock # ME01
- Share this
- Print page
| Operating weight | 7080 kg |
| Std. bkt. capacity | /0.28 m3 |
Engine
| Rated output | 40.5{55}/2100 kW(PS)/rpm |
| No. of cylinders | 4 |
| Bore x stroke | 95x115 mm |
| Displacement | 3.3 ltr |
Dimensions
| Overall length (A) | 5835 mm |
| Rear end radius (B) | 1290 mm |
| Std. shoe width (C) | 450 mm |
| Track length (D) | 2235 mm |
| Crawler length | 2840 mm |
| UC width (E) | 2320 mm |
| Track gauge (F) | 1870 mm |
| Overall height (G) | 2695 mm |
| Overall width (H) | 2365 mm |
| Std. arm length | 1750 mm |
Performance
| Gradeability | 35 deg |
| Arm crowd force | /40.4 deg |
| Bkt. digging force | /57.0 kN |
| Max digging depth | 4100 mm |
| Max dig. reach at GL | 6300 mm |
| Max digging reach | 6440 mm |
| Max dumping clearance | 5180 mm |
| Max digging height | 7300 mm |
| Travel speed | 2.7/4.1 km/h |
| Swing speed | 10.0 min-1 |
